CIMEX BeaverMax BM-27PRO is a professional, self-propelled machine with hydraulic drive that combines two functions in one chassis – log cutter and trencher.With interchangeable front attachments, the machine can be easily adapted to the task:

• Milling and removal of tree trunks
• Digging narrow channels for cables, pipes, irrigation systems, etc.

This versatility transforms BM-27PRO in a universal solution for landscaping companies, construction crews, plumbing operators and professional grounds maintenance.

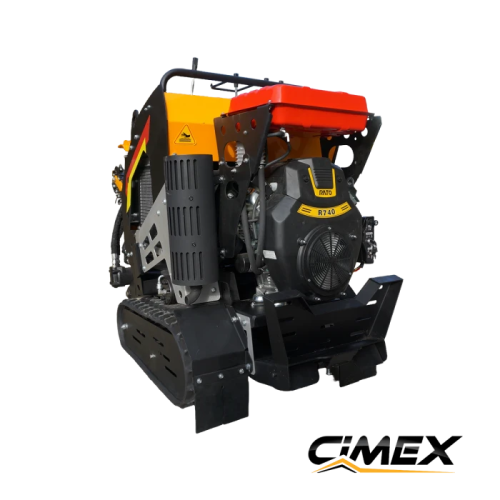

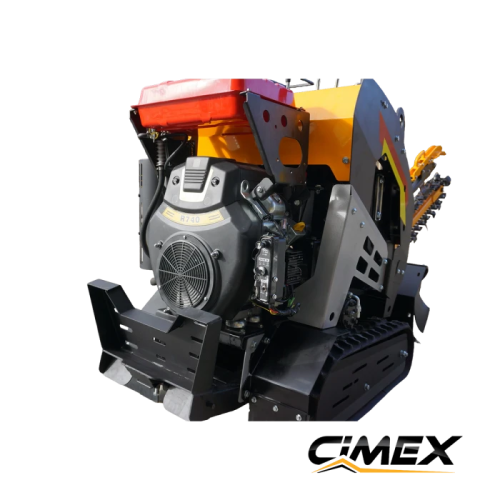

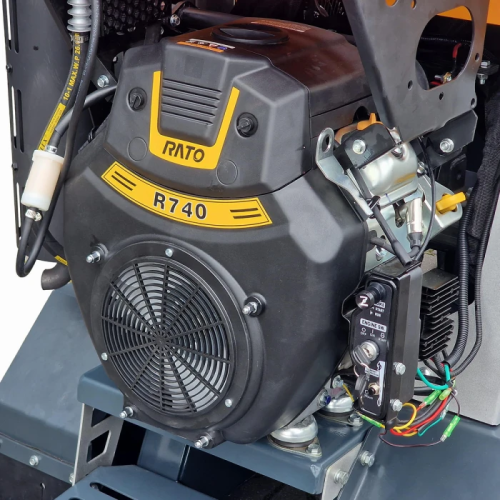

The model is entirely hydraulically driven– both the undercarriage and the working bodies. This provides smooth running, high traction, heavy-duty reliability and significantly lower maintenance requirements than mechanical systems. The machine is equipped with powerful two-cylinder gasoline engine RATO R740 with power 27 hp (740 cc), which provides the necessary torque to work in both configurations – log cutter and ditcher. The strength of the construction and the high level of control make the BM-27PRO suitable for daily intensive use in a variety of terrains.

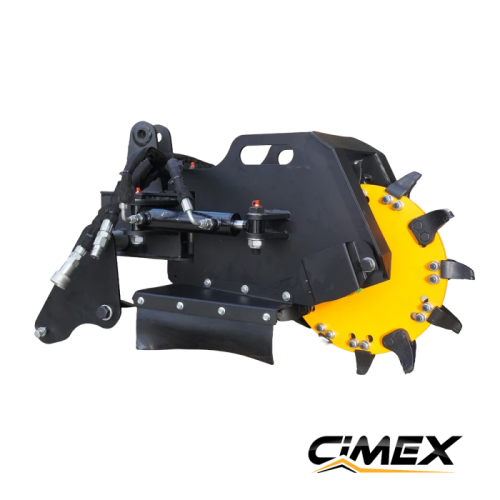

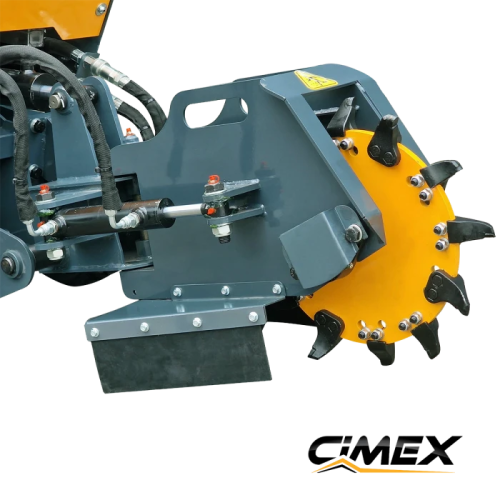

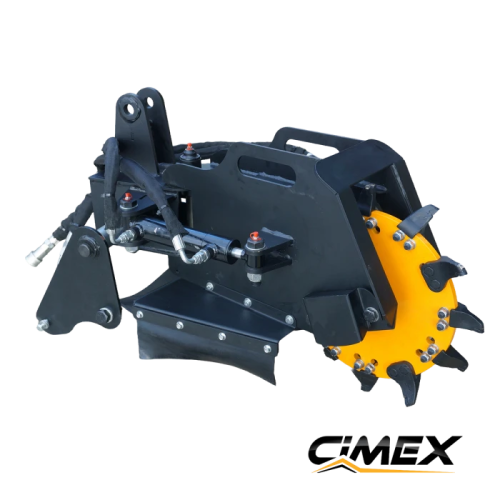

In the configuration as log cutter CIMEX BM-27PRO works with milling disc with a diameter of 370 mm, equipped with 12 carbide knives, which provide high wear resistance and effective hardwood removal. The machine allows the processing of logs with height up to 600 mm and reaching depth up to 235 mm below ground level, which guarantees complete removal of the root system and preparation of the terrain for subsequent activities. The hydraulic rocker arm provides smooth operation control, and the integrated joysticks allow for precise disc positioning and maximum efficiency.

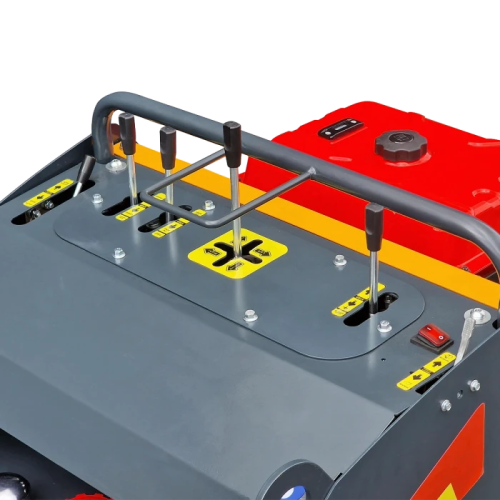

The chassis is made of rubber tracks with a width of 5.9" (150mm.), which provides stability and excellent traction even on soft, sloping or uneven terrain. The maximum movement speed is 5 km/h forward and 2.4 km/h reverse, which makes it easier to move between objects. Management is carried out through multi-function console with several joysticks, which control movement, disc speed, arm swing, and height adjustment. Completely the hydraulic system eliminates the need for belts and mechanical gears, which increases reliability and reduces maintenance costs.

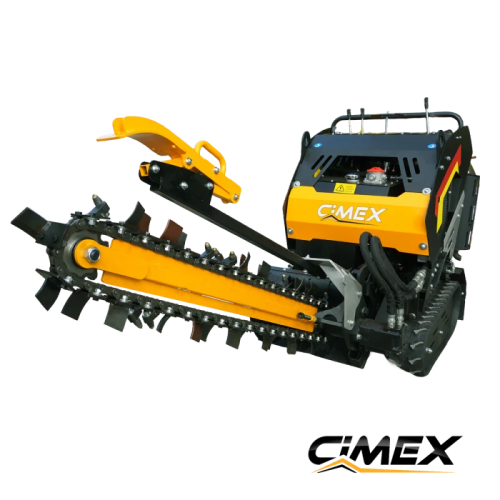

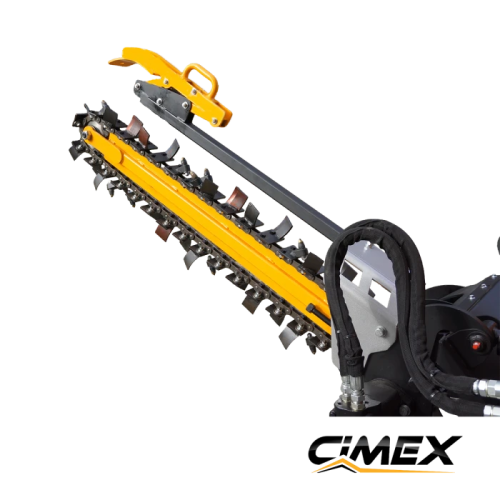

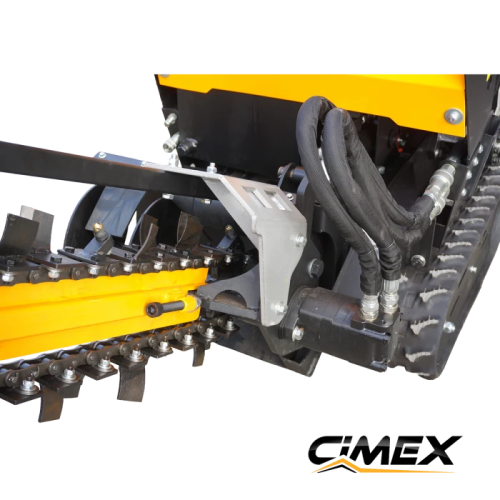

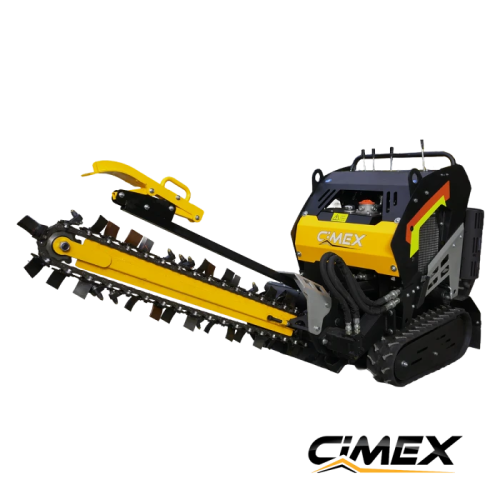

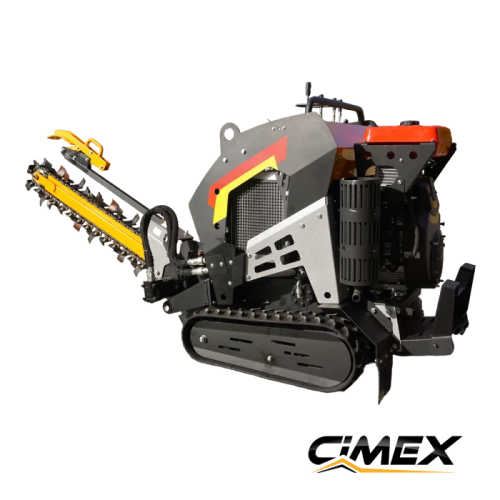

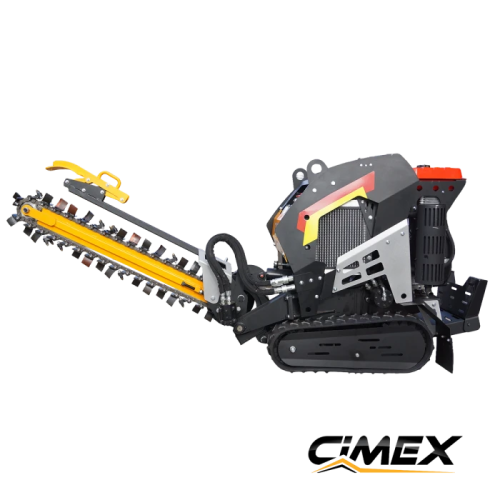

Like trencher the machine uses a different front attachment, which is mounted on the same main arm. Thanks to it, the BM-27PRO can dig narrow, clean and even channels, suitable for laying cables, pipes, communications and drainage. This functionality eliminates the need to purchase and transport a separate trencher, which optimizes costs and increases team flexibility.

The construction of the CIMEX BM-27PRO is designed for a long service life– the frame is reinforced, the bearings of the main elements are encapsulated and do not require additional lubrication, and the key components are easily accessible for servicing. The machine has safety systems, including protective covers, emergency shutdown and speed control, ensuring safe operation. Its dimensions -2300 × 790 × 1250 mm and weight about 455 kg- provide good maneuverability when working in narrow spaces and urban conditions.

CIMEX BM-27PRO is a professional solution combining power, reliability and functionality in a compact self-propelled body. The ability to work as both a log cutter and trencher makes it an extremely valuable tool for companies looking for maximum flexibility and efficiency in the field.

Key advantages

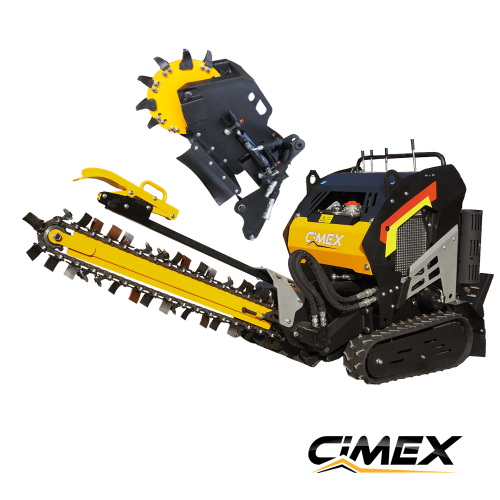

• Two machines in one chassis – thanks to the interchangeable front work attachment, the CIMEX BM-27PRO can work both as a log cutter and as a trencher. This reduces the need for separate equipment and optimizes site costs and logistics.
• Self-propelled hydraulic platform – the hydraulic drive of the movements and working bodies ensures high power, smoothness and reliability both when milling logs and when working with a trenching attachment.
• Stable operation on different terrains – 5.9” wide rubber tracks provide excellent traction on grass, soft soils, slopes and unevenness, which is critical for both milling and digging functions.
• High power for heavy duty applications – the RATO R740 27 HP engine with a large displacement (740 cc) provides the necessary torque for intensive work, allowing efficient drive of both the milling disc and trenching attachment.
• Precise control with joysticks – separate hydraulic joysticks allow control over the movement, swing, vertical positioning and drive of the working body. The same system facilitates the control of the trencher as the machine retains the same kinematics and control platform.
• Maneuverability in confined spaces – independent control of left and right travel enables high-precision positioning around buildings, fences and infrastructure — an important advantage in both modes of operation.
• Versatility in professional tasks – one machine can remove logs up to 600 mm high and 235 mm deep, and with a trenching attachment dig trenches for cables, pipes and irrigation systems, which expands the application of the BM-27PRO significantly.
• Reinforced construction for professional use – robust chassis, encapsulated bearings (no need for lubrication) and easy access to service points ensure long service life under daily use.
• Safety at work – the machine has protective covers, emergency shut-off, speed control and clearly defined operating and stopping procedures, which is valid for both the cutter and trencher work.

Technical specifications

• Engine: RATO R740 27 HP, 2-cylinder, 740 cc, petrol
• Power: 16.8 kW
• Cutting height: 0–600 mm
• Milling depth: up to 235 mm
• Milling disc: Ø370 mm
• Knives: 12 carbide
• Disc speed: up to 550 m/min
• Excavation speed: 60 m/h
• Trench width: 100 mm
• Trench depth: 0 – 600 mm
• Chain length: 2000 mm
• Maximum chain speed: 550 m/min
• Undercarriage: Rubber Tracks 5.9"
• Speed: 5.0 km/h (forward), 2.4 km/h (reverse)
• Dimensions: 2300 × 790 × 1250 mm
• Weight: 455 kg
• Control: multifunctional hydraulic console with joysticks
