Diesel three-phase / single-phase generator 18 kW, silent + ATS panel for automatic start CIMEX SDG18-T

Diesel three-phase / single-phase generator 18 kW, silent + ATS panel for automatic start CIMEX SDG18-T



The CIMEX SDG18-T three-phase diesel mobile generator is a highly effective solution for main and emergency power supply when working in construction, agriculture, industrial sites, logistics bases, events and all situations where reliable, professional-grade power is required. It is distinguished by its universal application of working in both single-phase and three-phase mode. With rated power 18 kW and maximum 19 kW, this model provides a stable, continuous and safe power supply even under heavy loads.

Single-phase mode (1-phase): The CIMEX SDG18-T generator can operate in standard single-phase mode, delivering 16kW power for applications that require 230V voltage. This is ideal for powering common household appliances, office equipment and small machines.

Three-phase mode (3-phase): At the same time, the SDG18-T diesel generator provides 18kW power and has EURO 32A outlet (three-phase), allowing direct connection of professional machines and equipment that require 380V voltage. This makes it suitable for more complex and energy-intensive industrial machinery, construction tools and equipment. All components are located in a housing with anti-corrosion coating.

The construction is silent type, which allows use near buildings and in environments with a requirement for low noise levels. The generator has electric start and is equipped with 45Ah battery, ensuring reliable ignition in all conditions. For added safety in cold weather, the SDG18-T is factory equipped with electric heating, which facilitates starting at low temperatures and ensures stable engine operation.

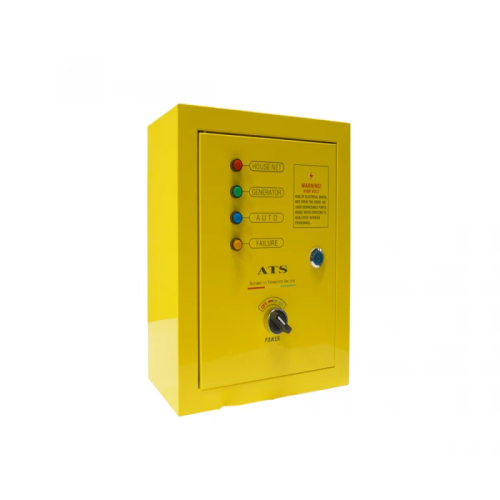

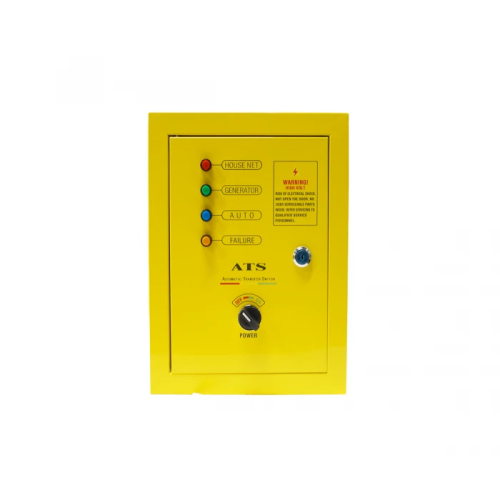

Comes with an included Auto Start Board (ATS)

C the field of construction, a 18kW CIMEX SDG18-T diesel generator, is essential for several key reasons:

• In the construction of new sites or renovation works, it is important to ensure a continuous power supply for various power tools, machines and lighting. The 18kW CIMEX SDG18-T diesel generator is an excellent solution for this, especially when there is no electricity grid in the area.
• For temporary repair work, such as road repair, building cladding or temporary construction, the SDG18-T mobile generator provides convenience and flexibility by providing electrical power where it is needed.
• In some cases, the power grid is not reliable enough or is not available. The mobile diesel generator provides independence from this grid and guarantees uninterrupted power supply.
• In case of accidents or emergency situations, when fast and efficient power supply is needed, the mobile diesel generator is indispensable. It provides electrical energy for the operation of electronics, lighting and other important systems.

For agriculture, the 18kW CIMEX SDG18-T three-phase diesel mobile generator is a valuable tool with multiple uses and benefits:

• The generator provides uninterrupted power supply for agricultural sites such as farms, farms and greenhouses. It is essential for powering power tools, cooling systems, water purifiers and other agricultural machinery.
• The 18kW CIMEX SDG18-T generator can be used to power pumps for watering fields, greenhouses and gardens, as well as pumping water from reservoirs or wells for livestock or crop production.
• In some cases, the generator can be used to electrify electric fences or other livestock protection systems, helping to prevent illegal animal entry or wildlife protection.
• For the construction of temporary buildings, machines or for other works in open areas where there is no electrical network, the generator provides the necessary electrical energy for the normal course of activities.

The 18kW CIMEX SDG18-T Mobile Diesel Three-Phase Generator is required equipment for holding various events, festivals, stages, concerts, mobile kitchens and exhibition areas offering several key benefits and capabilities:

• Stable power supply for audio and lighting systems;
• Power supply for catering equipment;
• Maintenance of communication and security systems;
• Energy for stands, LED walls, projectors and other consumers.

The silenced construction makes it particularly suitable for stage infrastructure where noise levels are critical.

These are just some of the areas where CIMEX mobile diesel generators can be used, but they have a wide range of applications and can be adapted to different types of work and industries.

The CIMEX SDG18-T diesel generator drive powered by a reliable and highly efficient 2-cylinder diesel engine that provides continuous and reliable power even under the most demanding conditions. The engine has a power of 22kW and is characterized by good fuel economy, low noise and vibration levels. It is easy to maintain and has a large operating resource.

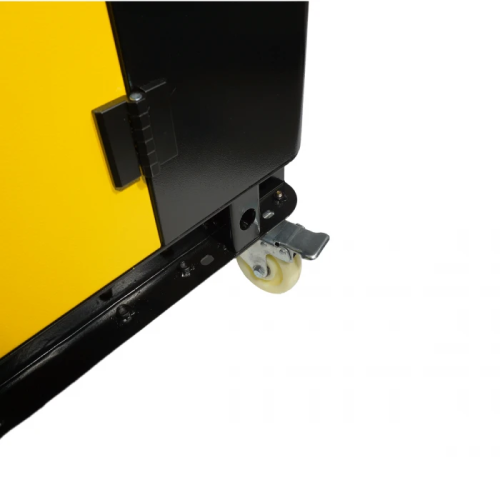

The three-phase generator CIMEX SDG18-T is equipped with sturdy wheels, which allow it to be easily moved and carried from one place to another, effortlessly and safely. The ability to easily move and place the generator in different places makes it flexible and suitable for a variety of applications and needs.

The low noise level, anti-corrosion coating and compact dimensions allow the generator to be used for outdoor installation near buildings.
Thanks to the built-in AVR (automatic output voltage regulation system), the generator provides a stabilized power supply, which allows the generator to power computer equipment, servers and other electronics, medical equipment in hospitals and any appliances sensitive to voltage fluctuations. To provide emergency power, the generator is standardly equipped with the ability to connect an AMF (ATS) module, through which, when the voltage from the network fails, the generator is started and automatically switched to emergency power mode.

Technical specifications

• Drive: 2-cylinder diesel engine;
• Extremely quiet - 50% quieter than standard silenced generators;
• Fuel tank located in the upper part of the generator, allowing easy filling and cleaning of the tank, if necessary.
• Anti-corrosion coating, powder coated;

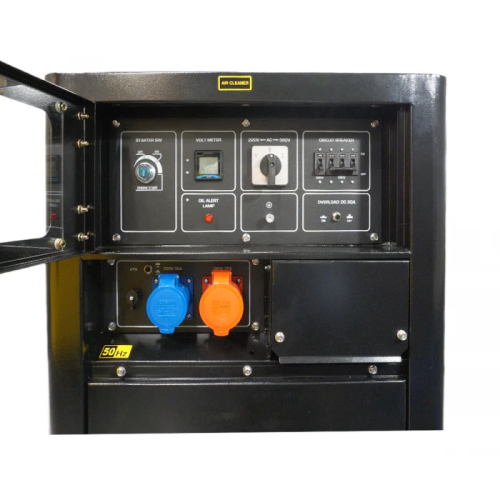

• LTS panel, voltmeter, tachometer, low oil indicator;
• Improved engine and alternator cooling system;
• Built-in AVR- automatic regulator of the output voltage, allowing power-sensitive electrical appliances and devices;
• Included ATS dashboard when required by automatic start when the supply voltage drops.
• Side opening covers, providing quick access to the nodes and aggregates;
• Brushless alternator;

Technical specifications

• Output voltage (V): 220, 380
• Number of phases: 3 (three-phase)
• Maximum power (kW): 19 / 19 kVA
• Rated power (kW): 18 / 18 kVA
• Power factor (cos fi): 1.0
• Auth. voltage regulator (AVR): YES
• Launch: Electric start (45Ah battery)
• Warming up: Electric (for operation in low temperatures)
• ATS dashboard

Engine:

• Fuel: Diesel
• Model: 2V105 4 stroke
• Working volume (cm3): 1523
• Power (kW): 22.8
• Number of cylinders: 2
• Nominal revolutions: 3000 - 3600 rpm
• Cooling: Air
• Starter: Electric starter (12 V) + 45 Ah battery

Weight (kg): 299
