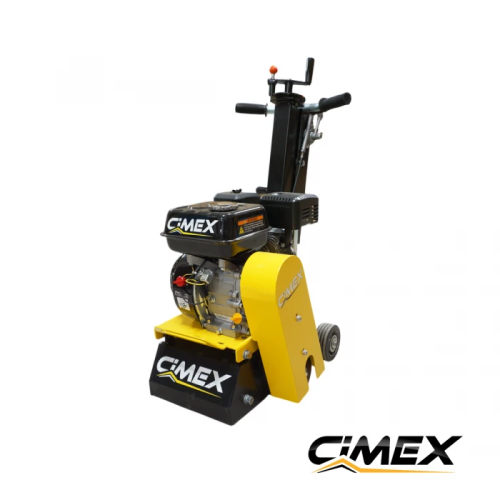

Gasoline Concrete and Asphalt Scarifier CIMEX SM200G / 200 mm, 6 HP

Gasoline Concrete and Asphalt Scarifier CIMEX SM200G / 200 mm, 6 HP

The CIMEX SM200G gasoline scarifier stands out for its high performance and precision in surface treatment. It is designed for efficient milling of concrete, screeds, adhesives, paints, and other coatings, and can be used in various applications depending on the type of cutting elements used. It is ideal for preparatory and repair work, including leveling surfaces, removing fine screeds, road markings, and residues of construction materials. Connecting it to a dust extraction system further improves the working environment by reducing dust spread and providing better visibility and comfort for the operator.

Unlike electric models, the CIMEX SM200G relies on a 6 HP gasoline engine, giving it complete independence from power supply. This makes the machine ideal for use on construction sites where access to electricity is limited. The gasoline engine is a LONCIN, known for its high performance and long service life. The torque from the engine is transmitted via a belt drive, and the SM200G model features two belts. This ensures extra reliability – even if one belt breaks, the machine continues to operate without needing immediate repair.

In addition to its power, the LONCIN engine is characterized by low fuel consumption and low vibration levels, ensuring more comfortable operation. The engine structure is designed for heavy-duty use, while the dual-stage air filter extends engine life by protecting it from dust in harsh working conditions.

The SM200G frame is made of high-strength powder-coated steel, providing reliable protection against corrosion, mechanical damage, and heavy loads. The entire structure is fully welded, increasing strength and durability for long-term use. This offers excellent protection for moving parts and minimizes the risk of mechanical failure. Reinforced structural elements further enhance the machine’s rigidity, making it suitable for demanding work environments.

The CIMEX SM200G has a working width of 200 mm and can mill to a depth of up to 3 mm. The machine is equipped with 98 hardened blades mounted on 6 drums, ensuring uniform and effective surface processing. For precise milling control, the CIMEX SM200G is fitted with a screw depth regulator with an ergonomic handle, allowing smooth and accurate adjustments according to operator needs.

For improved efficiency and operator comfort, the CIMEX SM200G has a built-in connector for an industrial vacuum cleaner, allowing efficient dust and fine particle collection. This significantly reduces dust levels and improves on-site working conditions. The system also helps extend machine life by preventing dust buildup in mechanical parts.

For transport convenience, the SM200G has a special lifting hole for use with a sling, hook, or rope, allowing easy and safe loading and unloading. Its compact size and balanced weight distribution improve maneuverability, even in tight spaces.

The handle of the CIMEX SM200G is designed with a focus on ergonomics and comfort during operation. It features adjustable height, allowing the operator to set it according to personal preference and stature, ensuring greater comfort and reduced fatigue during prolonged use.

Applications:

• Removing irregularities from concrete surfaces

• Cleaning contaminated surfaces

• Leveling uneven floors

• Grooving for surface adhesion

• Removing markings and paint from asphalt and concrete

• Milling joints and expansion cuts

Technical Specifications:
Dimensions with packaging (L x W x H) (mm): 860 x 510 x 76
Weight (kg): 74

Drum:
Milling shafts (pcs): 6
Cutting blades (pcs): 89

Milling:
Max milling depth (mm): 3
Max milling width (mm): 200

Engine:
Fuel: Gasoline
Model: Loncin, 4-stroke
Displacement (cm³): 196
Power (HP): 6
Cylinders: 1
Cooling: Forced air
