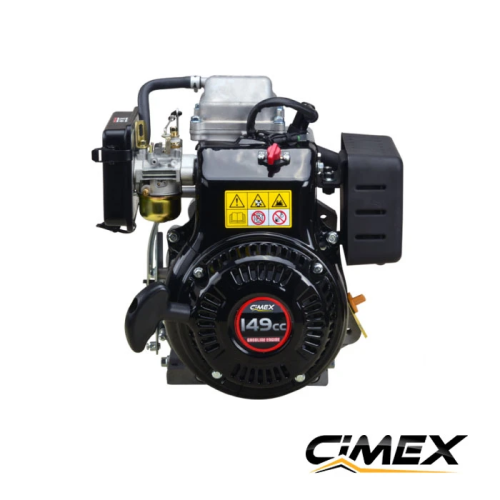

Gasoline Engine 4.3 HP CIMEX G100

Gasoline Engine 4.3 HP CIMEX G100

The CIMEX G100 4.3 HP engine is a four-stroke gasoline engine with a displacement of 149 cc and a power output of 4.3 HP. It is specially designed for heavy-duty use in dusty environments and construction machinery exposed to high vibration levels. With its 4.3 HP power, it is one of the most preferred engines for driving “rammer” compactors.

Technical specifications:
Engine type: Single-cylinder, four-stroke, air-cooled, OHV
Displacement: 149 cc
Bore/stroke: 65 mm / 45 mm
Power: 3.2 kW (4.36 HP) / 3600 rpm
Torque: 8.8 N.m / 2800 rpm
Idle speed: 1800±150 rpm
Compression ratio: 8.5:1
Rotation direction: Counterclockwise
Noise level: ≤75 dB(A)
Ignition system: Transistor magneto ignition
Starter: Recoil (manual)
Fuel tank capacity: 1.6 L
Weight: 15 kg
Dimensions: 336×290×348 mm
