Hand Core Drill Machine up to 165 mm / 2300 W

Hand Core Drill Machine up to 165 mm / 2300 W

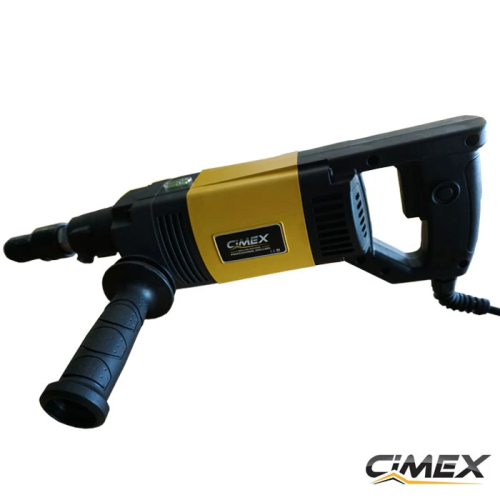

The CIMEX DCD165N hand core drill machine is designed for use with wet drilling diamond cores. Suitable for drilling holes in concrete (up to 130 mm) and masonry. For safety, the machine has a protective clutch to prevent operator injury in case of jamming.

The powerful 2300 W motor features a soft-start system, built-in fault current protection, and overload protection. The massive steel gearbox ensures durability. For stable handling during drilling, the machine is equipped with an extended side handle. Water cooling system is standard with a quick-connect nozzle.

Built-in levels (horizontal and vertical) ensure correct positioning.
Spindle thread: 1 ¼ UNC.

Standard equipment:

• Core drill machine – 1 pc

• Side handle – 1 pc

• Water cooling system

• Soft-start system

• Fault current protection

• Overload protection

• Core bit change key – 1 pc

• Storage case – 1 pc

Optional: additional stand for stabilizing the machine and more precise drilling.

Technical specifications:

• Maximum drilling diameter in masonry: 165 mm

• Maximum drilling diameter in concrete: 130 mm

• Voltage: 220V/50 Hz

• Rated power: 2300 W

• Spindle: 1 ¼ UNC

• No-load speed: 1900 rpm

• Weight: 7 kg

• Weight with packaging: 9 kg

• Dimensions with packaging (L x W x H): 550 x 140 x 340 mm
